Evolution Aqua EVOUV Ultraviolet Clarifiers Evolution Aqua EVOUV Ultraviolet Clarifiers

Evolution Aqua EVOUV Ultraviolet Clarifier-2

1 In stock

Size *
$340.00
-
+
$340.00

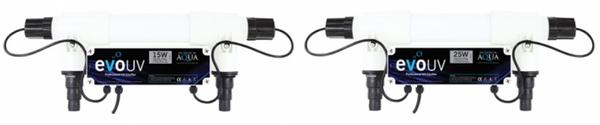

Evolution Aqua EVOUV Ultraviolet Clarifier

STOCK ARRIVING SOON

EVOUV YOUTUBE VIDEO

Professional ultraviolet clarifiers for ponds

Evolution Aqua’s pond UV clarifiers have been completely re-designed to deliver even greater performance and improved serviceability. Our range of six evoUV pond clarifiers are made using the very latest technology and design techniques, ensuring there is even water flow through the unit, and optimum ultraviolet light penetration.

One new feature is the ease of the serviceability of the evoUV. Changing bulbs, quartz sleeves or replacing a ballast are quick and simple to do.

The evoUV is simple to install, with universal mounting plates allowing you to fix the unit horizontally or vertically, or at any angle you choose.'

The evoUV range of clarifiers have been designed to clear green water which is caused by single celled green algae and prevent it from returning. They will work alongside many different filtration systems but when used alongside Evolution Aqua’s pond filtration systems, the evoUV will help to deliver crystal clear and healthy pond water.

Your evoUV professional quality UV can be connected to your pond pump and filter with flexible hose using the stepped hose tails provided, or you can install the unit using hard pipe.

Overview of Features

  • Improves water clarity by eradicating green water

  • High output, energy efficient ballast

  • Fully serviceable for easy maintenance

  • Easy to install

  • Available in six models

  • 2-year guarantee

Dimensions

evo15 and evo25

The overall dimensions of evo15 and evo25 are identical. They are 540mm (l) x 116mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 319mm. The evo15 uses a standard length 15W T8 UV bulb and the evo25 uses a standard 25W T8 UV bulb.

evo15 and evo25 Dimensions

evo30 and evo55

The overall dimensions of evo30 and evo55 are identical. They are 990mm (l) x 85mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 768.5mm. The evo30 uses a standard length 30W T8 UV bulb and the evo55 uses a standard 55W T8 UV bulb.

evo30 and evo55 Dimensions

evo75

The overall dimensions of evo75 are 1293mm (l) x 85mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 1071.5mm. The evo75 uses a standard length 75W T8 UV bulb.

evo75 Dimensions

evo110

The overall dimensions of evo110 are 990mm (l) x 195mm (w) x 280mm (h). The distance between the centre of the inlet and the centre of the outlet is 768.5mm. The evo110 uses two standard length 55W T8 UV bulbs.

evo110 Dimensions

Specifications

                   Model

Max. pond size

Max. flow rate

Bulb Power

Inlet/Outlet

Fittings supplied

                  EVO15

15,000 Litres
3,300 UK Gallons
3,963 US Gallons

7,500 Litres/hr
1,650 UK Gallons/hr
1,982 US Gallons/hr

15W
(1 x 15W T8)

1½"

2 x 1½"
Threaded Hosetails

EVO25

20,000 Litres
4,400 UK Gallons
5,284 US Gallons

10,000 Litres/hr
2,200 UK Gallons/hr
2,642 US Gallons/hr

25W
(1 x 25W T8)

1½"

2 x 1½"
Threaded Hosetails

EVO30

30,000 Litres
6,600 UK Gallons
7,925 US Gallons

15,000 Litres/hr
3,300 UK Gallons/hr
3,962 US Gallons/hr

30W
(1 x 30W T8)

1½"

2 x 1½"
Threaded Hosetails

EVO55

55,000 Litres
12,100 UK Gallons
14,530 US Gallons

20,000 Litres/hr
4,400 UK Gallons/hr
5,284 US Gallons/hr

55W
(1 x 55W T8)

1½"

2 x 1½"
Threaded Hosetails

EVO75

75,000 Litres
16,500 UK Gallons
19,815 US Gallons

25,000 Litres/hr
5,500 UK Gallons/hr
6,605 US Gallons/hr

75W
(1 x 75W T8)

1½"

2 x 1½"
Threaded Hosetails

EVO110

75,000 Litres
16,500 UK Gallons
19,815 US Gallons

25,000 Litres/hr
5,500 UK Gallons/hr
6,605 US Gallons/hr

110W
(2 x 55W T8)

2"

No Fittings Supplied



EVOUV Instruction Manual

Evolution Aqua EVOUV Ultraviolet Clarifier

STOCK ARRIVING SOON

EVOUV YOUTUBE VIDEO

Professional ultraviolet clarifiers for ponds

Evolution Aqua’s pond UV clarifiers have been completely re-designed to deliver even greater performance and improved serviceability. Our range of six evoUV pond clarifiers are made using the very latest technology and design techniques, ensuring there is even water flow through the unit, and optimum ultraviolet light penetration.

One new feature is the ease of the serviceability of the evoUV. Changing bulbs, quartz sleeves or replacing a ballast are quick and simple to do.

The evoUV is simple to install, with universal mounting plates allowing you to fix the unit horizontally or vertically, or at any angle you choose.'

The evoUV range of clarifiers have been designed to clear green water which is caused by single celled green algae and prevent it from returning. They will work alongside many different filtration systems but when used alongside Evolution Aqua’s pond filtration systems, the evoUV will help to deliver crystal clear and healthy pond water.

Your evoUV professional quality UV can be connected to your pond pump and filter with flexible hose using the stepped hose tails provided, or you can install the unit using hard pipe.

Overview of Features

  • Improves water clarity by eradicating green water

  • High output, energy efficient ballast

  • Fully serviceable for easy maintenance

  • Easy to install

  • Available in six models

  • 2-year guarantee

Dimensions

evo15 and evo25

The overall dimensions of evo15 and evo25 are identical. They are 540mm (l) x 116mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 319mm. The evo15 uses a standard length 15W T8 UV bulb and the evo25 uses a standard 25W T8 UV bulb.

evo15 and evo25 Dimensions

evo30 and evo55

The overall dimensions of evo30 and evo55 are identical. They are 990mm (l) x 85mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 768.5mm. The evo30 uses a standard length 30W T8 UV bulb and the evo55 uses a standard 55W T8 UV bulb.

evo30 and evo55 Dimensions

evo75

The overall dimensions of evo75 are 1293mm (l) x 85mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 1071.5mm. The evo75 uses a standard length 75W T8 UV bulb.

evo75 Dimensions

evo110

The overall dimensions of evo110 are 990mm (l) x 195mm (w) x 280mm (h). The distance between the centre of the inlet and the centre of the outlet is 768.5mm. The evo110 uses two standard length 55W T8 UV bulbs.

evo110 Dimensions

Specifications

                   Model

Max. pond size

Max. flow rate

Bulb Power

Inlet/Outlet

Fittings supplied

                  EVO15

15,000 Litres
3,300 UK Gallons
3,963 US Gallons

7,500 Litres/hr
1,650 UK Gallons/hr
1,982 US Gallons/hr

15W
(1 x 15W T8)

1½"

2 x 1½"
Threaded Hosetails

EVO25

20,000 Litres
4,400 UK Gallons
5,284 US Gallons

10,000 Litres/hr
2,200 UK Gallons/hr
2,642 US Gallons/hr

25W
(1 x 25W T8)

1½"

2 x 1½"
Threaded Hosetails

EVO30

30,000 Litres
6,600 UK Gallons
7,925 US Gallons

15,000 Litres/hr
3,300 UK Gallons/hr
3,962 US Gallons/hr

30W
(1 x 30W T8)

1½"

2 x 1½"
Threaded Hosetails

EVO55

55,000 Litres
12,100 UK Gallons
14,530 US Gallons

20,000 Litres/hr
4,400 UK Gallons/hr
5,284 US Gallons/hr

55W
(1 x 55W T8)

1½"

2 x 1½"
Threaded Hosetails

EVO75

75,000 Litres
16,500 UK Gallons
19,815 US Gallons

25,000 Litres/hr
5,500 UK Gallons/hr
6,605 US Gallons/hr

75W
(1 x 75W T8)

1½"

2 x 1½"
Threaded Hosetails

EVO110

75,000 Litres
16,500 UK Gallons
19,815 US Gallons

25,000 Litres/hr
5,500 UK Gallons/hr
6,605 US Gallons/hr

110W
(2 x 55W T8)

2"

No Fittings Supplied



EVOUV Instruction Manual
