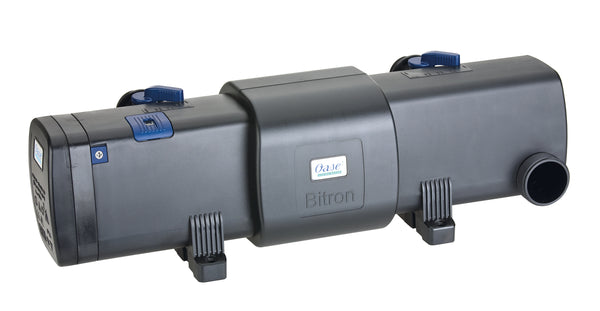

Oase Bitron C 36 W UVC clarifier Oase Bitron C 36 W UVC clarifier

Oase Bitron C 36 W UVC clarifier 56804

1 In stock

$1,120.00
-
+
$1,120.00

Oase Bitron C 36 W UVC clarifier

03OU012

Key features

  • Clever bypass system combines high flow rates with duration of radiation
  • Permanent self-cleaning thanks to patented cleaning rotor
  • Highly effective against suspended algae, bacteria and germs

Characteristic

  • Elimination of suspended algae (green water)
  • Reduction of harmful bacteria and pathogen levels
  • Clever UVC function monitor, display for bulb change and water temperature
  • Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
  • Individual water flow adjustment for optimal adaptation to the connected filter pump
  • Integrated magnets protect the UVC technology against limescale deposits
  • Visual function check of the UVC bulb
  • 100% protection against eye damage
  • Quick release technology for easy bulb replacement
  • High-quality workmanship with impact resistant plastic housing
  • Incl. high quality UVC bulb
  • Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
  • Suitable for ponds up to 40.0 m³

UV globes have about 9000 effective working hour and should be replaced every year. Preferably at the beginning of spring as green water and algae issues will be most present during summer periods.

REPLACEMENT GLOBES

Technical data

Dimensions (L x W x H)                      mm       600 x 180 x 198

Rated voltage                                                  220 - 240 V / 50/60 Hz

Power consumption                           W          36

Power cable length                             m          5.00

Net weight                                           kg          3.97

Guarantee                                            Years     2

UVC power                                           W          36

Temperature display                                           No

Bypass control                                                     manually

UVC operating hours meter                                No

Function check                                                    Visual

Number of inlets                                    Units     1

Inlet connections                                    mm       19 / 25 / 32 / 38 / 50

Number of outlets                                  Units     2

Connections, outlet                                 mm       25 / 32 / 38

Min. flow rate                                           l/h         8000

Max. flow rate                                           l/h         30000

Max. operating pressure                           bar        0.5

Suitable for ponds up to max.                   m3        40.0

Suitable for ponds with fish stock             m3        20.0

Suitable for ponds with koi                        m3        10.0

Connection to                          BioSmart 18000/36000, BioTec ScreenMatic² 40 - 60000

Oase Bitron C 36 W UVC clarifier

03OU012

Key features

  • Clever bypass system combines high flow rates with duration of radiation
  • Permanent self-cleaning thanks to patented cleaning rotor
  • Highly effective against suspended algae, bacteria and germs

Characteristic

  • Elimination of suspended algae (green water)
  • Reduction of harmful bacteria and pathogen levels
  • Clever UVC function monitor, display for bulb change and water temperature
  • Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
  • Individual water flow adjustment for optimal adaptation to the connected filter pump
  • Integrated magnets protect the UVC technology against limescale deposits
  • Visual function check of the UVC bulb
  • 100% protection against eye damage
  • Quick release technology for easy bulb replacement
  • High-quality workmanship with impact resistant plastic housing
  • Incl. high quality UVC bulb
  • Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
  • Suitable for ponds up to 40.0 m³

UV globes have about 9000 effective working hour and should be replaced every year. Preferably at the beginning of spring as green water and algae issues will be most present during summer periods.

REPLACEMENT GLOBES

Technical data

Dimensions (L x W x H)                      mm       600 x 180 x 198

Rated voltage                                                  220 - 240 V / 50/60 Hz

Power consumption                           W          36

Power cable length                             m          5.00

Net weight                                           kg          3.97

Guarantee                                            Years     2

UVC power                                           W          36

Temperature display                                           No

Bypass control                                                     manually

UVC operating hours meter                                No

Function check                                                    Visual

Number of inlets                                    Units     1

Inlet connections                                    mm       19 / 25 / 32 / 38 / 50

Number of outlets                                  Units     2

Connections, outlet                                 mm       25 / 32 / 38

Min. flow rate                                           l/h         8000

Max. flow rate                                           l/h         30000

Max. operating pressure                           bar        0.5

Suitable for ponds up to max.                   m3        40.0

Suitable for ponds with fish stock             m3        20.0

Suitable for ponds with koi                        m3        10.0

Connection to                          BioSmart 18000/36000, BioTec ScreenMatic² 40 - 60000
