OASE ProfiClear Guard Auto Top Up OASE ProfiClear Guard Auto Top Up
OASE ProfiClear Guard Auto Top Up
1 In stock
OASE ProfiClear Guard Auto Top Up
- Trouble free level detection thanks to a conductive sensor
- Full setup flexibility through 20 m sensor cable
- Solenoid valve closes automatically if there is a power outage
Characteristics

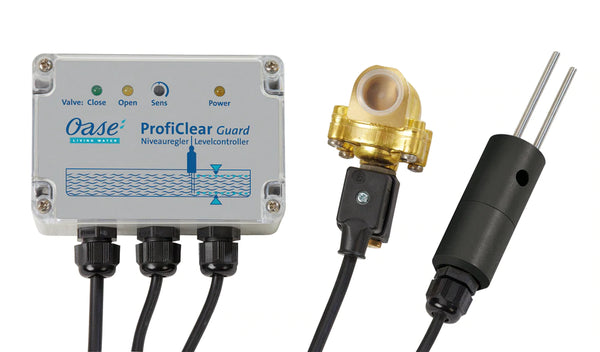

- Complete set consisting of control system, ½" solenoid valve and conductive level detection
- Sensor can be shortened to 10 mm switching differential
- Sensor sensitivity is adjustable
- Integrate switching hysteresis to prevent undesired replenishment through waves
- LED status display for the solenoid valve
- The control system can be mounted on a wall Including sensor fastening element for projecting pond edges
- Servo-controlled 230 V brass solenoid valve (splashproof installation required)
Specifications
| Rated voltage + frequenzy | 230 V / 50/60 Hz |
| Nominal sensor voltage – V | 12 V |
| Power consumption - W | 3 W |
| Net weight | 2.820 kg |
| Power cable length - m | 2 m |
| Sensor cable length – m | 20 m |
| Valve cable length – m | 3 m |
| Connection - mm | 13 mm |
| Connection | ½" |
| Max. operating pressure – bar | 18 bar |
| Switching difference – mm | 25 mm |
| Guarantee - years | 2 Years |
