SKU SKU 03OG004

Availability Availability 1 In stock

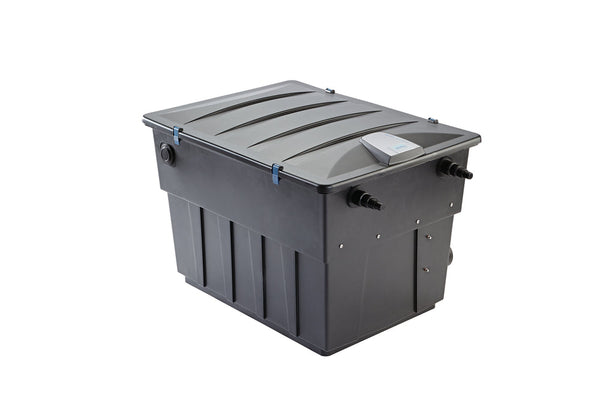

OASE BioTec ScreenMatic² 60000

Clear and healthy pond water with minimum maintenance requirements
Particularly long service life thanks to automatic coarse debris extraction before it enters into the filter
Continuous belt filter at an affordable price

Incl. OASE Clear Water Guarantee
Significantly less maintenance is required, thanks to coarse debris extraction
More convenience, thanks to automatically driven self cleaning of the belt filter
Adjustable cleaning Sensor controls the belt run, depending on the degree of pollution.
Incl. LED function check
Cleaning of filter sponges directly in the filter, without removal
Sludge drain with slide valve for removing debris from the filter system
Different filter media for optimal development of filter bacteria
Use of the PhosLess filter media tubes as needed for string algae reduction (optional accessory)
Optimally matched to OASE AquaMax Eco filter pumps
Direct connection possibility for Bitron C and Eco UVC clarifiers
Reinforced strap material for an extended service life
Double-sealed motor for an extended service life
Water distributor without danger of clogging: Distributes the water uniformly on the belt filter
Sludge basket with greater volume and simplified handling
Rubberised separating lip for outstanding separation result
Free brush for occasional cleaning of the belt filter
Manual belt run now possible via button
Highly effective flow-through filter for ponds up to 40.0 m³
Lids of models 40,000 and 60,000 with storm-safe fastening clips

Dimensions filter (L x W x H)	mm	788 x 590 x 545
Net weight	kg	23.50
Rated voltage (primary, secondary)		230 V / 50 Hz, 12 V / AC
Power consumption	W	5
Cable length 12 V device (with power unit)	m	2.10 (Power unit) + 5.00
Guarantee (+ request guarantee)	Years	2 + 1
Number of filter foams, total	Units	8
Number of blue filter foams	Units	2
Number of red filter foams	Units	3
Number of purple filter foams	Units	3
Special filter granulate	kg	3.50
Temperature display		No
Coarse debris extraction	µm	300
Connection inlet filter	mm	25 / 32 / 38
Connection inlet filter		1", 1 ¼", 1 ½"
Connections, outlet filter		DN 75
Sludge discharge connections		DN 50
Max. flow rate	l/h	11000
Suitable for ponds up to max.	m³	60.0
Suitable for ponds with fish stock	m³	30.0
Suitable for ponds with koi	m³	15.0
Connection to		Bitron C 36 - 110 W, Bitron Eco 120 - 240 W
