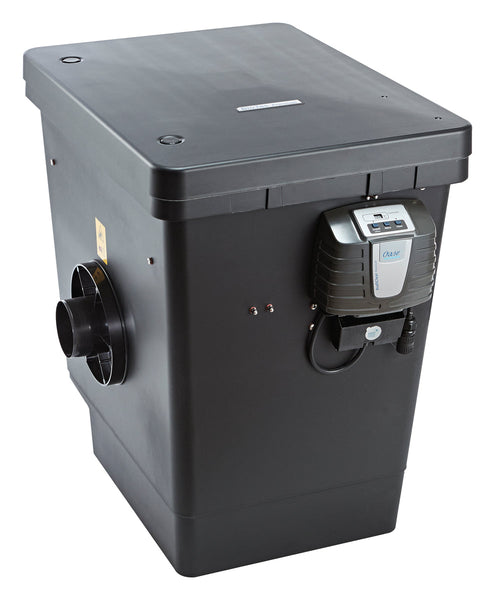

OASE Biotec Premium 80000 OASE Biotec Premium 80000
1 In stock
OASE Biotec Premium 80000
- Innovative filter system with extremely effective filter capacity
- Intelligent controller system with easy operation monitors and displays the core functions.
- Professional drum filter technology for long service intervals ensures efficient utilization of the filter biology
Characteristics
- The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology
- Conveniently control all settings via an app with the Easy Garden Control System (EGC); existing systems can be upgraded using the separately available upgrade kit
- Long service life and high quality filter sponges offer the best conditions for the filter biology
- The filter is flushed only by cleaned pond water. Therefore a fresh water connection is not required.
- Powerful, high-quality pressure pump is integrated for flushing the drum
- Particularly quiet in operation thanks to extensive noise insulation
- Individually removable sieve elements (no tools required) and free-wheeling functions for easy access to the drum interior
- Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum
- Less string algae through continuous removal of phosphates and nutrients
- Pollutant discharge incl. slide valve
- Innovative and reliable product "Made in Germany" (except pressure pump)
- Incl. OASE Clear Water Guarantee
Specifications
|
Rated voltage + frequency |
230 V / 50 Hz |
|
Power consumption - W |
5 W |
|
Power consumption, cleaning – W |
670 W |
|
Cable length |
5.00 + 1.00 m |
|
Net weight |
56 |
|
Guarantee (+ request guarantee) - years |
2 + 1 Years |
|
Control unit |
Microcontroller |
|
Temperature display |
Digital |
|
Coarse dirt separation – micrometres |
125 µm |
|
Number of nozzles / cleaning flow rate |
1 x 4.0 l/min |
|
Scavenging pump |
4 bar |
|
Automatic self cleaning |
manually, Sensor, Time interval |
|
Material |
GRP Duroplast/stainless steel |
|
Number of blue filter foams – pc. |
2 Units |
|
Number of red filter foams – pc. |
2 Units |
|
Number of purple filter foams – pc. |
2 Units |
|
Number of inlets – pc. |
1 Units |
|
Connection inlet |
1 x 2" + Bitron |
|
Connection EGC |
Yes |
|
Connection to |
Bitron C 36 - 110 W, Bitron Eco 120 - 240 W, ProfiClear Classic |
|
Number of outlets – pc. |
1 Units |
|
Connections outlet |
DN 110 |
|
Connections, sludge discharge |
DN 75 |
|
Connection mud drain |
DN 110 |
|
Min. flow rate - l/h |
7500 l/h |
|
Max. flow rate - l/h |
12500 l/h |
|
Suitable for ponds up to max. – m³ |
80 m³ |
|
Suitable for ponds with fish stock – m³ |
40 m³ |
|
Suitable for ponds with koi – m³ |
20 m³ |
|
Installation height above water level – cm |
51 cm |
OASE Biotec Premium 80000
- Innovative filter system with extremely effective filter capacity
- Intelligent controller system with easy operation monitors and displays the core functions.
- Professional drum filter technology for long service intervals ensures efficient utilization of the filter biology
Characteristics
- The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology
- Conveniently control all settings via an app with the Easy Garden Control System (EGC); existing systems can be upgraded using the separately available upgrade kit
- Long service life and high quality filter sponges offer the best conditions for the filter biology
- The filter is flushed only by cleaned pond water. Therefore a fresh water connection is not required.
- Powerful, high-quality pressure pump is integrated for flushing the drum
- Particularly quiet in operation thanks to extensive noise insulation
- Individually removable sieve elements (no tools required) and free-wheeling functions for easy access to the drum interior
- Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum
- Less string algae through continuous removal of phosphates and nutrients
- Pollutant discharge incl. slide valve
- Innovative and reliable product "Made in Germany" (except pressure pump)
- Incl. OASE Clear Water Guarantee
Specifications
|
Rated voltage + frequency |
230 V / 50 Hz |
|
Power consumption - W |
5 W |
|
Power consumption, cleaning – W |
670 W |
|
Cable length |
5.00 + 1.00 m |
|
Net weight |
56 |
|
Guarantee (+ request guarantee) - years |
2 + 1 Years |
|
Control unit |
Microcontroller |
|
Temperature display |
Digital |
|
Coarse dirt separation – micrometres |
125 µm |
|
Number of nozzles / cleaning flow rate |
1 x 4.0 l/min |
|
Scavenging pump |
4 bar |
|
Automatic self cleaning |
manually, Sensor, Time interval |
|
Material |
GRP Duroplast/stainless steel |
|
Number of blue filter foams – pc. |
2 Units |
|
Number of red filter foams – pc. |
2 Units |
|
Number of purple filter foams – pc. |
2 Units |
|
Number of inlets – pc. |
1 Units |
|
Connection inlet |
1 x 2" + Bitron |
|
Connection EGC |
Yes |
|
Connection to |
Bitron C 36 - 110 W, Bitron Eco 120 - 240 W, ProfiClear Classic |
|
Number of outlets – pc. |
1 Units |
|
Connections outlet |
DN 110 |
|
Connections, sludge discharge |
DN 75 |
|
Connection mud drain |
DN 110 |
|
Min. flow rate - l/h |
7500 l/h |
|
Max. flow rate - l/h |
12500 l/h |
|
Suitable for ponds up to max. – m³ |
80 m³ |
|
Suitable for ponds with fish stock – m³ |
40 m³ |
|
Suitable for ponds with koi – m³ |
20 m³ |
|
Installation height above water level – cm |
51 cm |
