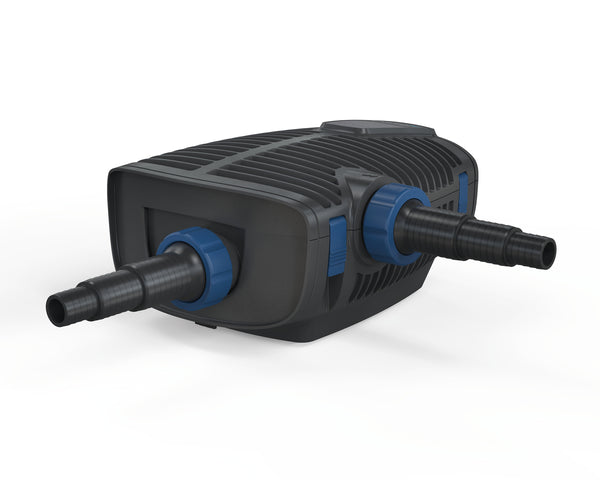

OASE AquaMax Eco Premium 4000

This filter and watercourse pump is a power-saving talent. A particularly effective feature is the additional connection for optional filter accessories at the second, patented inlet. Dirt particles up to 11 mm in size can be removed not only from the pond bottom, but also from the pond edge with a satellite filter or from the water surface with a surface skimmer. Thanks to the clever frost protection technology, the pump can remain in the pond down to -20°C and is guaranteed not to be damaged. Thanks to EFC (Environmental Function Control), the pump switches off automatically in the event of dry running or blockage, thus preventing damage to the unit.

Key Features

• Outstanding energy efficiency and displacement capacity
• Simultaneous supply of debris through connection of filter accessories on the patented, second inlet
• Patented frost protection to –20° C

Characteristic

• Outstanding energy balance: reliable displacement using even less energy
• Supplementary, patented connection of optional filter accessories for debris supply from more distant pond zones
• Unique, patented frost protection: the pump will not be damaged at temperatures down to as low as -20° C
• Elegant design with clever operating elements
• Quiet for dry setup on swim ponds and bathing ponds
• »Environmental Function Control« (EFC by OASE) protects against dry run and blocking
• MADE IN GERMANY: precise and reliable German engineering skills at a particularly high quality level
• Displace plant remains or fish waste up to 10 mm in size
• Output can be adjusted electronically using the optional accessories InScenio Dimmer or FM-Master 3/FM-ProfiMaster (NOT INCLUDED)

TECHNICAL DATA

Dimensions (L x W x H)                       mm       340 x 280 x 165

Rated voltage                                                    220 - 240 V / 50/60 Hz

Power consumption                             W          10 - 35

Power cable length                              m          10.00

Net weight                                           kg          5.30

Guarantee (+ request guarantee)        Years    3 + 2

Max. flow rate                                       l/min    66

Max. flow rate                                       l/h         4000

Max. head height, metres                     m          3.30

Pressure-side connection                     mm       50

Suction-side connection                      mm       50

Hose connection                                  mm       25 / 32 / 38

Filter intake surface                              cm²       1000

Max. coarse debris displacement         mm       10

Electronic adjustment                                         Yes

Setup type                                            Can be set up underwater & dry installed
