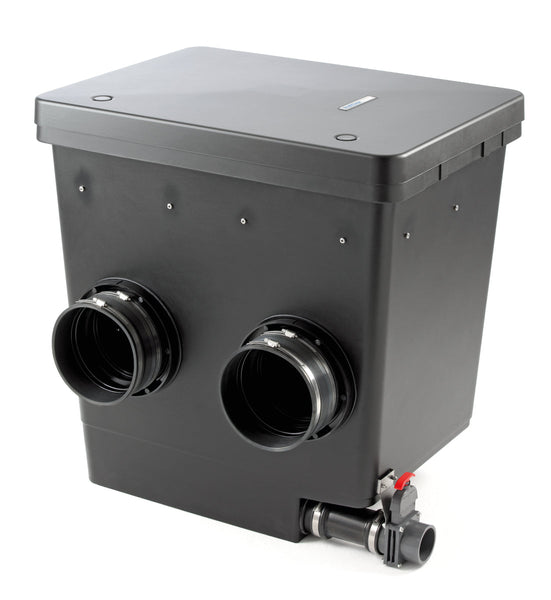

OASE ProfiClear Premium Individual Module OASE ProfiClear Premium Individual Module
1 In stock
OASE ProfiClear Premium Individual Module
- Highly efficient filter system with deep bed filtration to 60 microns
- Intelligent controller completely handles the self cleaning
- First class price/performance ratio
Characteristics
- Mature, professional technology with more than three years of development time
- Space saving pump and UVC chamber for
- Maximum flexibility in the connection through 2 x DN110 and 2" transitions
- To increase the filter capacity, it is possible to fill the individual baskets in the flow area with additional filter media – up to 8 litres fill volume integrated bottom drain with high quality, finely engineered slide valve
- Flexible adaptation of the filter system to individual requirements (individual module)
- Innovative and reliable product »Made in Germany«
Specifications
|
Net weight |
37.000 kg |
|
Guarantee (+ request guarantee) - years |
2 + 1 Years |
|
Material |
GRP Duroplast/stainless steel |
|
Number of inlets – pc. |
2 Units |
|
Connection inlet - mm |
180 mm |
|
Connection inlet |
2 x 185 mm |
|
Number of outlets – pc. |
4 Units |
|
Connections outlet - mm |
50 mm |
|
Connections outlet |
2 x 2" / 2 x DN 110 |
|
Connections, sludge discharge |
DN 75 |
|
Connection to |
AquaMax Eco Gravity, Bitron Gravity |
|
Min. flow rate - l/h |
10000 l/h |
|
Max. flow rate - l/h |
33000 l/h |
|
Installation height above water level – cm |
11.5 cm |
|
Type of use |
Gravity fed system, Pump fed system |
|
Other |
Pollutant discharge incl. slide valve |
