OASE ProfiClear Premium Compact-M gravity EGC OASE ProfiClear Premium Compact-M gravity EGC
OASE ProfiClear Premium Compact-M gravity EGC
1 In stock

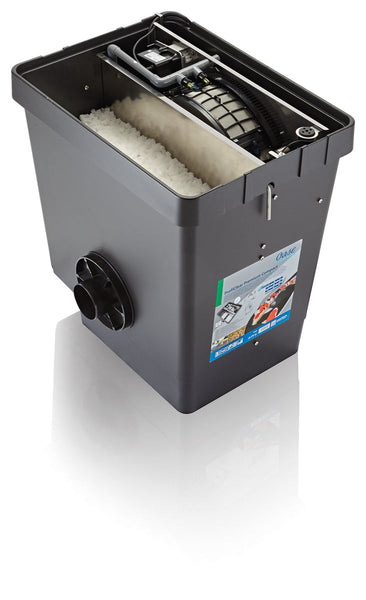

OASE ProfiClear Premium Compact-M gravity EGC
- Professional compact drum filter as inexpensive alternative for smaller ponds, particularly koi ponds
- High separation performance in the pump-fed as well as gravity-fed principle
- Minimal space requirements and effective integration
Characteristics
- Conveniently control all settings via an app with the Easy Garden Control System (EGC); existing systems can be upgraded using the separately available upgrade kit
- Inexpensive alternative for smaller ponds, particularly koi ponds
- The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology
- Available in the pump-fed principle and in the gravity-fed principle
- Conveniently control all settings via an app, through via the Easy Garden Control System (EGC)
- With the Moving Bed System for optimal water movement and water cleaning
- High separating capacity through deep-bed filtration of up to 60 microns
- Hel-X 13 filter medium with significantly enlarged surface area for effective decomposition of nutrients and pollutants
- Innovative and reliable product »made in Germany« (except pressure pump)
- The filter is flushed only by cleaned pond water.
- Therefore a fresh water connection is not required
- Particularly quiet operation thanks to extensive noise insulation
- Individually removable sieve elements (no tools required) and free-wheel function
- Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum
- Minimal install height for full flexibility with gravity-fed systems
Specifications
| Rated voltage + frequenzy | 230 V / 50 Hz |
| Power consumption - W | 5 W |
| Power consumption, cleaning – W | 670 W |
| Cable length | 5.00 + 5.00 m |
| Net weight | 81.000 kg |
| Guarantee (+ request guarantee) - years | 2 + 1 Years |
| Biological filter surface – m² | 38.2 m² |
| Protected biological filter surface – m² | 32.2 m² |
| Control unit | Microcontroller |
| Temperature display | Digital |
| Coarse dirt separation – micrometres | 80 µm |
| Number of nozzles / cleaning flow rate | 2 x 3.5 l/min |
| Scavenging pump | 4 bar |
| Automatic self cleaning | manually, Sensor, Time interval |
| Number of sieve elements – pc. | 6 Units |
| Filter intake surface | 1135 cm² |
| Material | GRP Duroplast/stainless steel |
| Number of inlets – pc. | 2 Units |
| Connection inlet - mm | |
| Connection inlet | DN 110 |
| Number of outlets – pc. | 1 Units |
| Connections outlet | DN 110 |
| Connections, sludge discharge | DN 75, DN 110 |
| Connection mud drain | DN 110 |
| Connection to | AquaOxy 2000, Bitron Gravity, ProfiClear pump chamber Compact |
| Min. flow rate - l/h | 7500 l/h |
| Max. flow rate - l/h | 16500 l/h |
| Installation height above water level – cm | 10.5 cm |
| Type of use | Gravity fed system |
| Other | Aeration pre-installedincl. 40l Hel-X 13 BiomediaPollutant discharge incl. slide valve |
